Neonate Wiki

Valid for BC-5700D/BC-5800D

Versions

Changes in functionVersionSerialnumber
First launch versionA0314A, 0614A, 0814A, 1014A, 0415A, 0715A, 0915A, 1015A, 0316A, 0716A, 1016A, 1116A
Power connector change to USB port/compatible with 1st versionB0117A, 0417A
Add in charging indication when power is off/compatible with 2nd versionC0717C, 1117C
Added power saving feature, now up to 200h stand-by-timeD0718D
Change low temperature limit allowable selection range to -19° to +25°CE0119E
Charging time reduce by 40%/AC adapter change to 5V 1A no cord + independent USB cable. Charging current increased from 350A to 700A.F0519F
New batteries from new supplierG0120G
Modify firmware such that the battery status show more linear degradation/compatible with 7th versionH0221H
Changed to 3-wire batteries. According to the new CE requirement, the Li battery used in electronic devices need to be incorporated with PTC and NTC circuitry and there are 3 wire coming out from battery. Besides, the battery need to be covered up with a V0 fire retardant sleeve (see attached photo). As a result, the battery will be more safe and less chance to become overheated and melt the cabinet.I0421I
Add 3 colour sticker in battery compartment and battery/compatible with I versionJ0721J
Start using gold plated battery connectorK0422K (April 2022)
Modify software to restrict battery charging below 0° and above 55 °C/compatible with K versionstarting 1122LL
Modify tooling to avoid power on/off switch being pressed inside/compatible with L version.M
Changed connection from micro USB to USB-CStarting at 0924MM

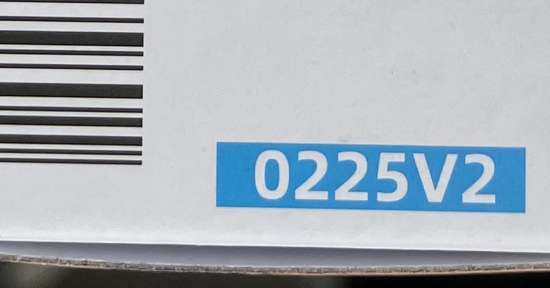

Skjermbilde 2025-05-27 kl. 12.42.13New IC, not compatible with previous versions. Serial numbers have a V2 at the end. Retail box has XXXXV2 marked in blue on the side. N0225N xxxx 58 V2
Silk screen on unitsTBATBA

1100mA Battery Consuption

Unit typeTX Mode RX Mode StandbyStandby hours
Baby80mA- | - 14mA78,5h
Parent- | - 120mA13mA84,6h

FAQ

ProblemLøsning
Enhetene mister kontakt med hverandre i tillegg til høy skurrelydBytte ut PU

A-105 mounting kit

EndringIverksatt
Sugekopp fjernes fra mounting kitet for å spare miljø. 30/4-25
